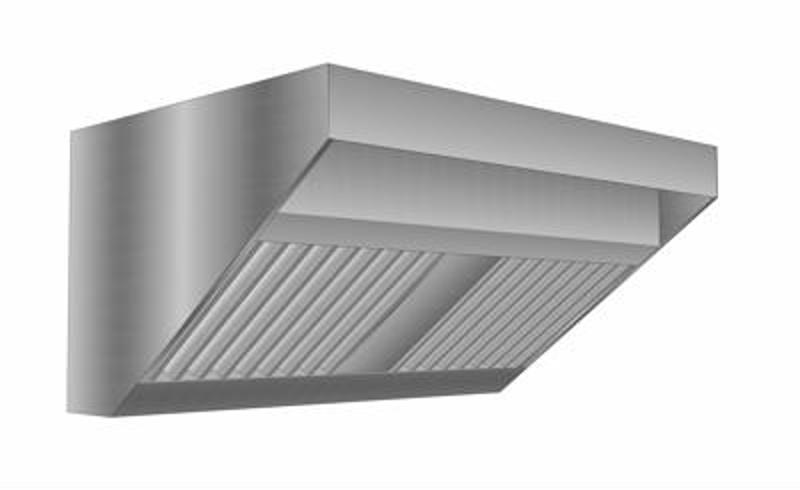

Stainless steel wall hood type SNACK, series 700, 3600x700x450mm

Characteristics:

• dimensions: 3600mm x 700mm x 450mm (length x width x height);
• material - stainless steel AISI 430 (1.4016), scotch brite finish, sheet thickness - 0.8mm;
• maze filters - 6 pcs, filter dimensions - 500x400x25mm (length x width x height);
• the hood contains grease and condensate collector channel, 6 support rings, 3 mounting brackets and grease drain valve, 2 drain holes;
• the hood does not contain the outlet plug and the fan.

On request, the hood can also be made of stainless steel AISI 304 (1.4301) and can be equipped with:

• internal or external centrifugal fan. If a fan is desired, specify the required flow. If you do not know this information, specify the volume of the kitchen and the diameter / length of the exhaust pipe.
• speed regulator, recessed spotlights along the length;
• rectangular or circular pipes made of stainless steel or galvanized sheet;
